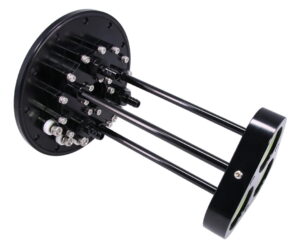

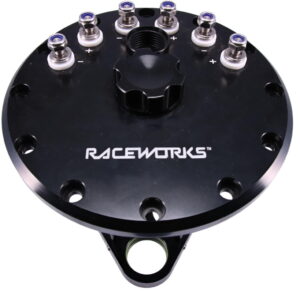

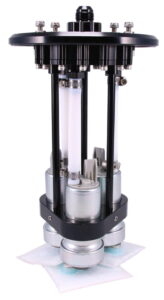

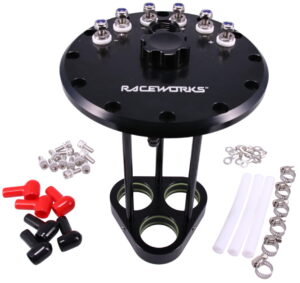

Raceworks 1-3 FUEL PUMP HANGER

ALY-195BK_HR ALY-195BK-ALT_HR ALY-195BK-ALT1_HR ALY-195BK-ALT2_HR

The Raceworks Hanger is designed for fitting into the ALY-27xBK range of Fuel Cells, or may be used in a custom fuel tank through the use of a steel or aluminium weld ring. It holds 1-3 pumps of diameter 39-40mm.

Specifications
Adjustable in height. Single AN-10 ORB Outlet Triple AN-6 ORB pump inlets. Includes 10mm barb inlet fittings, and PTFE hose. 6 x Stainless Electrical Terminals with PTFE seals, allowing the pumps to be triple staged. Anodised in Black, providing corrosion resistance when used with E85 When used with a weld ring, suits a tank height of 195mm to 265mm. Fuel Filler Cap is AN-16 ORB

Specifications

Adjustable in height.
Single AN-10 ORB Outlet
Triple AN-6 ORB pump inlets.
Includes 10mm barb inlet fittings, and PTFE hose.
6 x Stainless Electrical Terminals with PTFE seals, allowing the pumps to be triple staged.
Anodised in Black, providing corrosion resistance when used with E85
When used with a weld ring, suits a tank height of 195mm to 265mm.

Fuel Filler Cap is AN-16 ORB

Part Number
ALY-195BK

Compatibility List

Raceworks	Ti Automotive (Walbro)
EFP-500	F90000262*
	F90000267*
	F90000274*
	F90000285*
	F90000295*
	GSS340
	GSS341
	GSS342
	GSS350
	GSS351
	GSS352

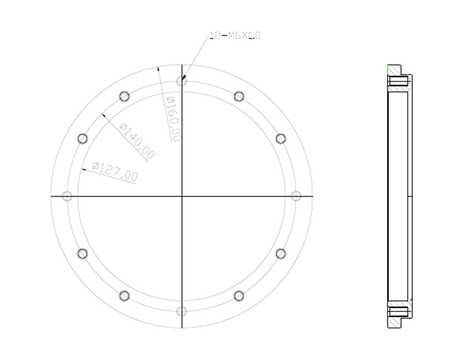

Material	Part Number

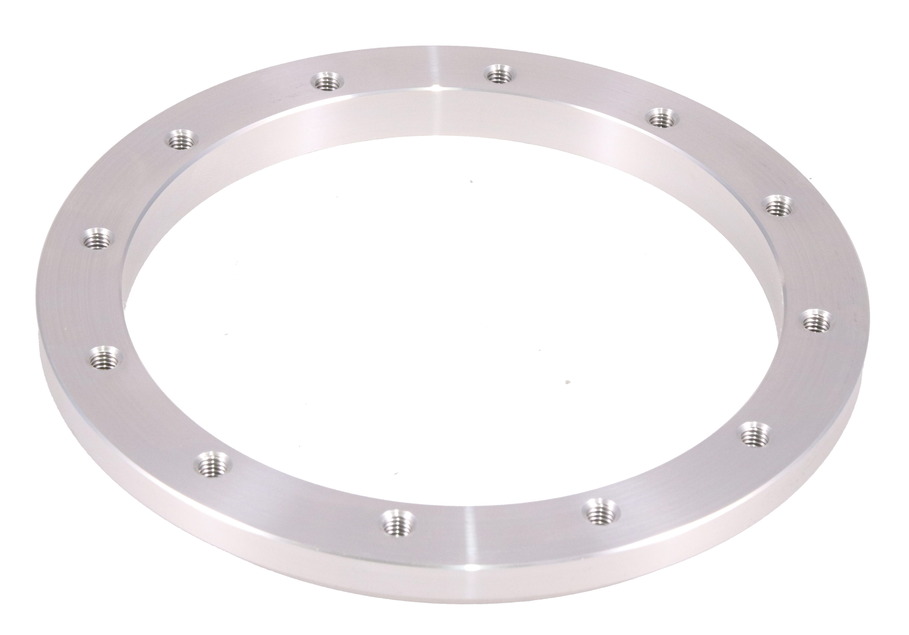

Aluminium	ALY-241-A
Steel	ALY-241-S

For High Current fuel pump wiring, see Fuel Pump Wiring Kits

1-3 FUEL PUMP HANGER – ADJUSTABLE

Compatibility List
