Raceworks Hangers are an addition to our fuel cell range, allowing the use of modern high-flow intank fuel pumps. They suit a range of pump diameters from 37-40mm, and are height adjustable. They can be used with custom fuel tanks also, through the use of a steel or aluminium weld ring.
| Specifications |
|---|
| Drop in hanger with filler for Raceworks Fuel Cells. Adjustable in height Can be configured with either a single or twin pumps Dual Stainless Electrical Terminals with PTFE Seals, allowing the pumps to be staged AN-8 ORB Anodised in Black, providing corrosion resistance when used with E85 Viton O-rings supplied with PTFE Intank Hose and stainless clamps |
| Suits | Tank Height | Part Number |
|---|---|---|
| 39-40mm Pumps | 180-250mm | ALY-131BK |
| Raceworks | Ti Automotive (Walbro) |
|---|---|
| EFP-500 | F90000262* |
| F90000267* | |
| F90000274* | |
| F90000285* | |
| F90000295* | |
| GSS340 | |
| GSS341 | |
| GSS342 | |
| GSS350 | |
| GSS351 | |
| GSS352 |
*Ti Automotive F Series pumps don’t sit level, due to Raceworks Fuel Cell Filler holes being too small to install the pumps. Therefore, use one pump with FPS-067 45deg strainer. Ensure both strainers are bottomed out on the tank floor. F Series pumps will happily lift 1.5″. This method is tested and proven to work successfully.
| Suits | Tank Height | Part Number |
|---|---|---|
| 38MM Pumps | 180-275mm | ALY-132BK |
| Raceworks | Pierburg |
|---|---|
| EFP-501 | 7.21088.62.0 |

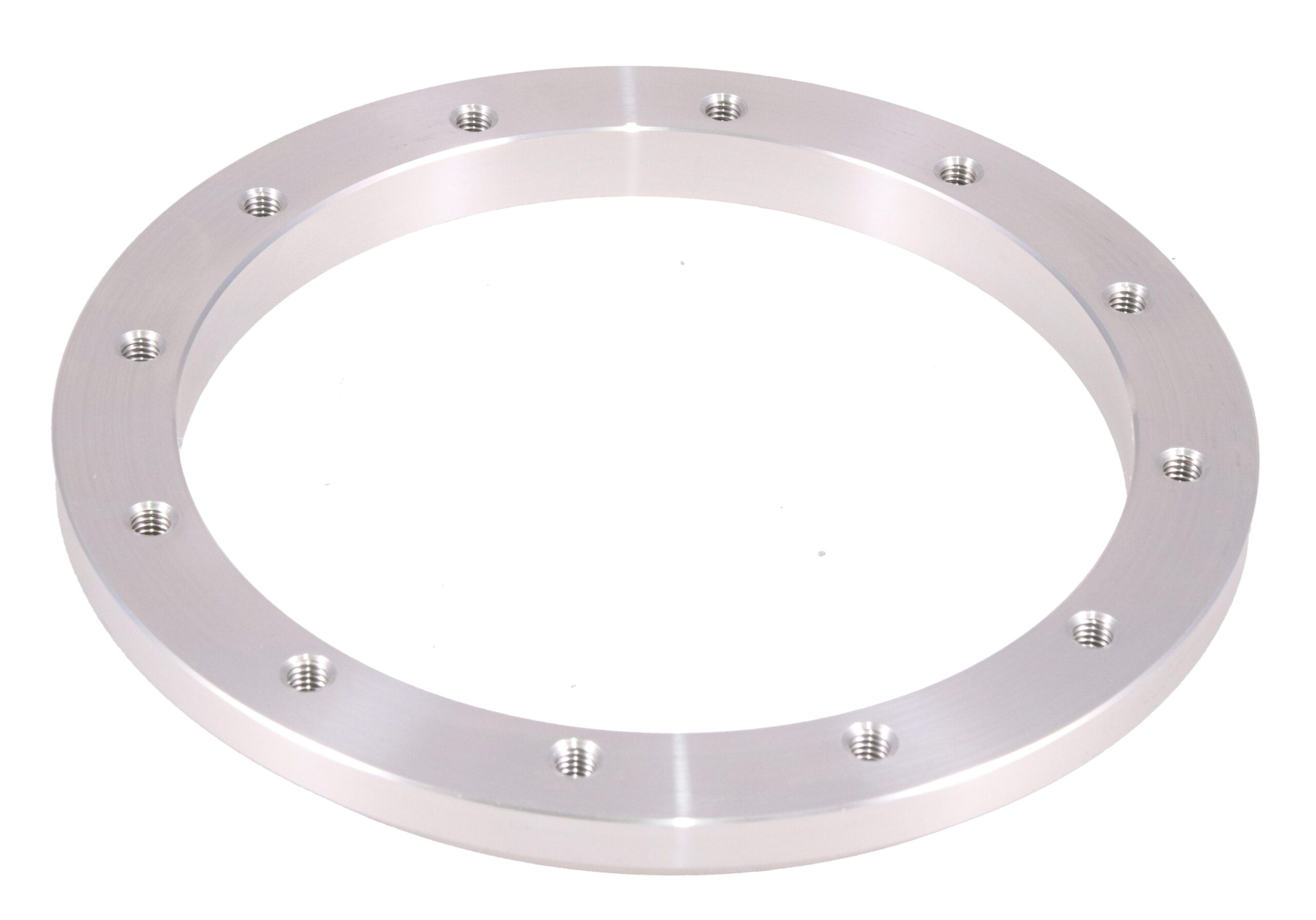

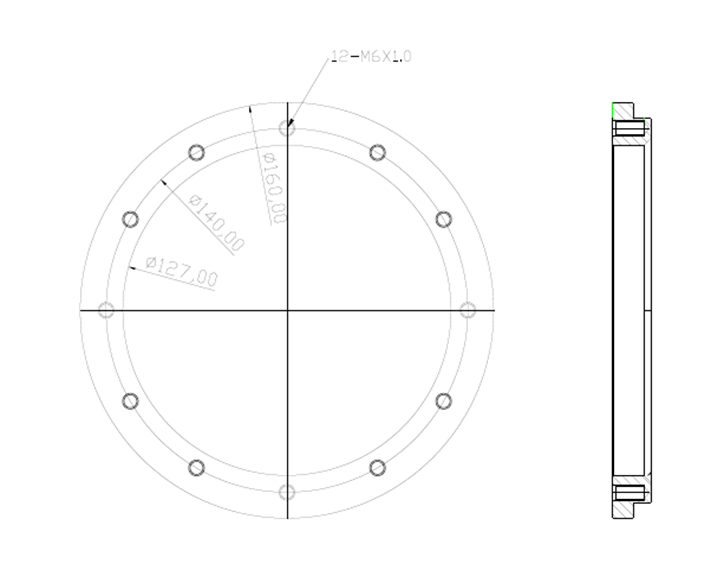

Weld Rings to suit ALY-131BK and ALY-132BK
| Material | Part Number |
|---|---|
| Aluminium | ALY-119-A |
| Steel | ALY-119-S |
For single outlet when using twin pumps, use RWF-922-08BK Fittings, with RWF-939-08-08BK Y-Block, and RWF-920-08LBK Return Fitting if using with a dog bowl
