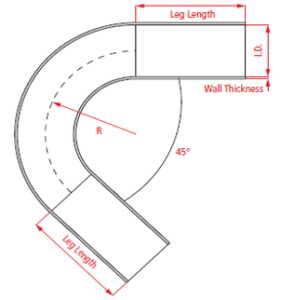

| Outer Dia. Imperial | Outer Dia. Metric | Part No. | Leg Length mm | Wall Thickness | Centre Line Radius | Bead Rolled | Finish |
|---|---|---|---|---|---|---|---|
| 2.00″ | 50.8mm | ITE-135-200 | 140mm | 1.6mm | 76.2mm | No | Raw |
| 2.50″ | 63.5mm | ITE-135-250 | 140mm | 2.0mm | 96.8mm | No | Raw |
| 3.00″ | 76.2mm | ITE-135-300 | 140mm | 2.0mm | 114.3mm | No | Raw |
| 4.00″ | 101.6mm | ITE-135-400 | 185mm | 2.0mm | 152.8mm | No | Raw |
