320LPH E85 Pump (Big Port Centre Inlet) – EFP-800

Raceworks > Fuel System > Pumps > High Pressure In-Tank Pumps > 320LPH E85 Pump (Big Port Centre Inlet) – EFP-800

Specifications

Part Number

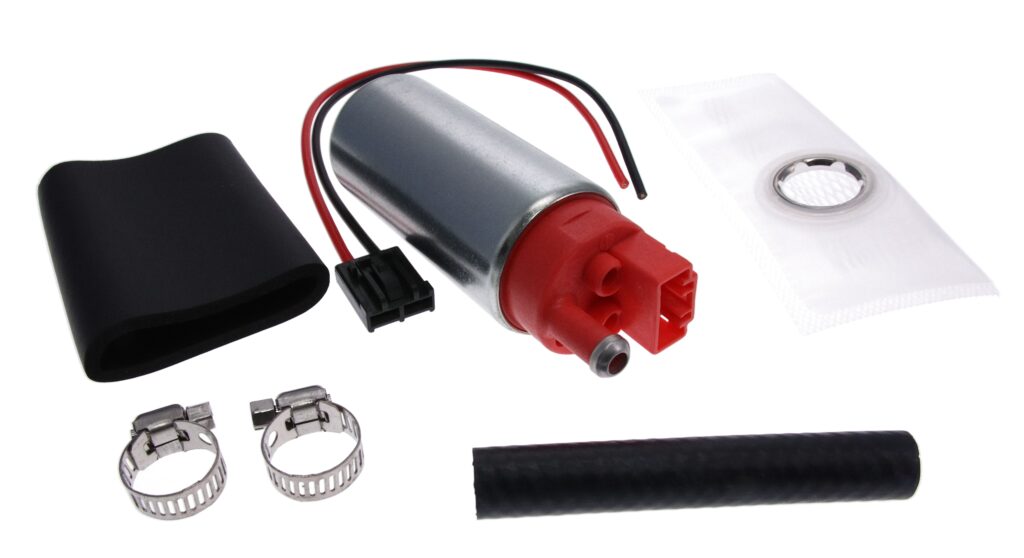

340LPH @ 3bar (13.5V). For flow details and current draw at 13.5V please consult chart below. 39mm Pump Diameter. Internal Check Valve. Includes Big Port flexible strainer as pictured.

Upgraded wiring recommended for this pump.

EFP-800

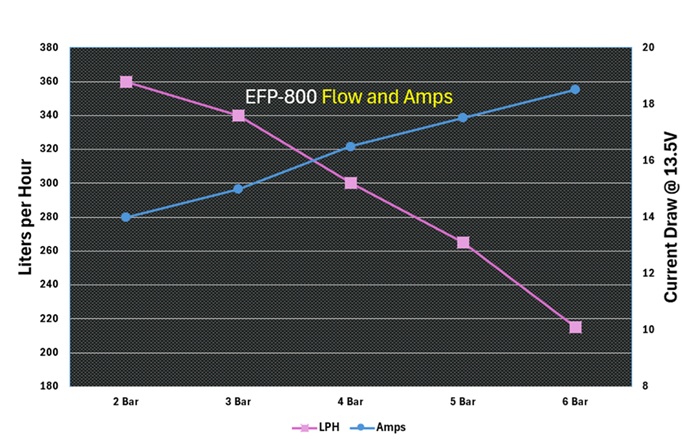

Pump Chart

Download Pump Charts Flow and Amps PDF

FLYWHEEL POWER FIGURES (ESTIMATED)

Normally Aspirated Gasoline	855HP	635KW
Forced Inducted Low Boost Gasoline	640HP	475KW
Forced Inducted High Boost Gasoline	570HP	425KW

Normally Aspirated E85	695HP	515KW
Forced Inducted Low Boost E85	525HP	390KW
Forced Inducted High Boost E85	470HP	350KW
