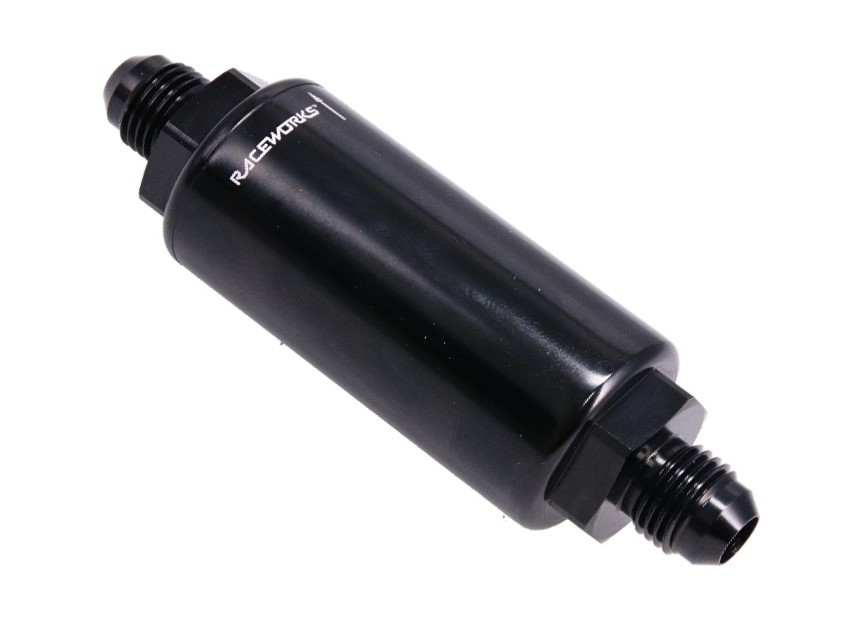

Male Flared Mini Motorsport Filter
Raceworks Billet Inline Filters were created using the Raceworks Mini Billet filters as a base. They use a new mini internal element which still offers great flow rates, with improvements in design result in a shorter overall length. They contain male flare fittings on ends for less complexity and to help reduce length.

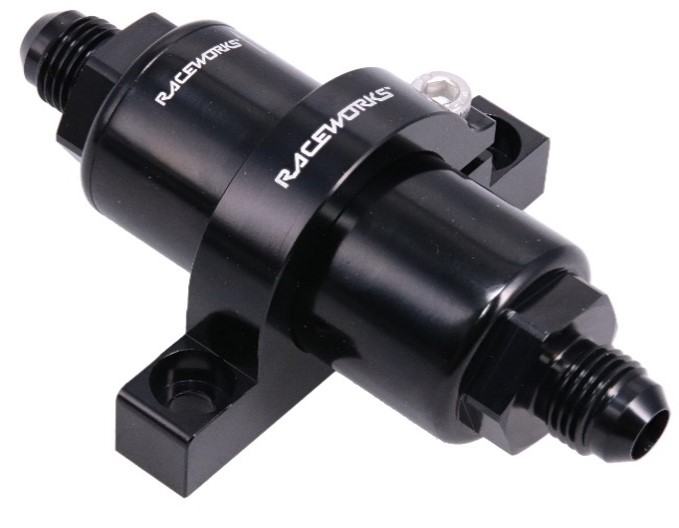

Bracket to suit is ALY-230BK.
Contain Stainless lifetime elements which are E85 Safe. 31mm body dia. 104mm Long including AN Male Flare fittings (built in).
Replacement Filter part number is ALY-231-** 10 / 40 / 75 (changing the ** to the micron number you require).
| AN Size | Micron | Maximum Flow Rating @ 3Bar* | Part Number |
|---|---|---|---|
| -6 | 10 | *need specs* | ALY-226-10BK |
| -6 | 40 | *need specs* | ALY-226-40BK |
| -6 | 75 | *need specs* | ALY-226-75BK |

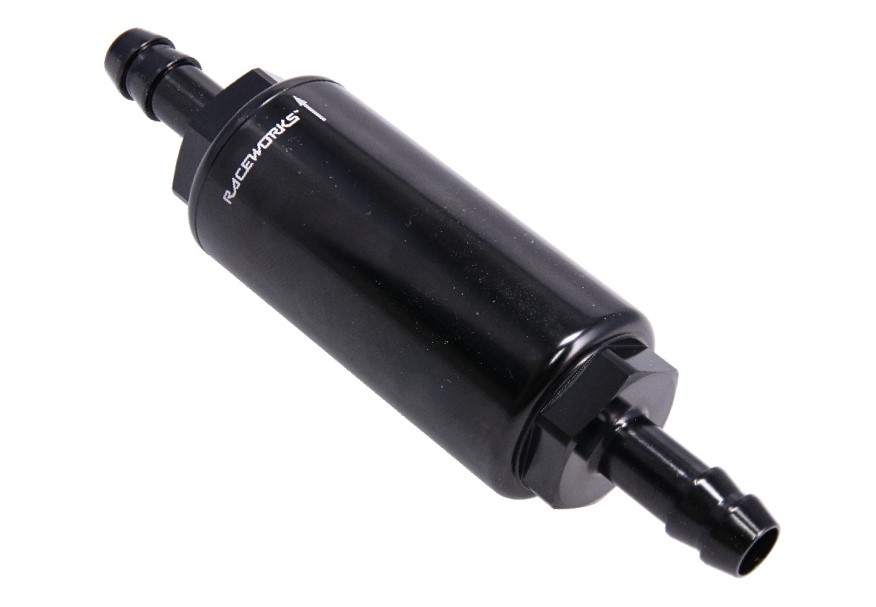

Barbed Mini Motorsport Filter
Same as the Male Flared Mini Motorsport filters with a Barbed ends.
Bracket to suit is ALY-230BK
Contain Stainless lifetime elements which are E85 Safe. 31mm body dia. 120mm (5/16″ babr) & 124mm Long (3/8″ barb)
Replacement Filter part number is ALY-231-** 10 / 40 / 75 (changing the ** to the micron number you require)
| AN Size | Micron | Maximum Flow Rating @ 3Bar* | Part Number |
|---|---|---|---|
| 5/16″ (8mm) | 10 | *need specs* | ALY-227-10BK |
| 5/16″ (8mm) | 40 | *need specs* | ALY-227-40BK |
| 5/16″ (8mm) | 75 | *need specs* | ALY-227-75BK |
| 3/8″ (10mm) | 10 | *need specs* | ALY-228-10BK |
| 3/8″ (10mm) | 40 | *need specs* | ALY-228-40BK |
| 3/8″ (10mm) | 75 | *need specs* | ALY-228-75BK |
